SuperCast® – Clear Art Coating Resin

30.00190.00 ex. VAT

SuperCast® Clear Artwork Casting Resin is a two component epoxy resin that produces an optically clear, high gloss finish and is particularly suited to resin art and shallow mould castings (jewellery items, flower-setting & paperweights etc).

Eli-Chem’s SuperCast® self-levels to form a perfectly flat and shiny finish. Once cured, it provides a clear art coating resin that won’t shrink or distort over time. It can be applied by pouring or brush/roller and cures at ambient temperatures. It has excellent UV resistance, clarity and transparency making the resin system suitable for the protection of just about any creative project.

  • Solvent and odour free
  • User friendly
  • Self-Levelling formula
  • Mixed viscosity 2,600 mPa.s>/li>
  • Optical clarity (colour no. Gardner max.1)
  • Exceptional UV resistance
  • Non-flammable

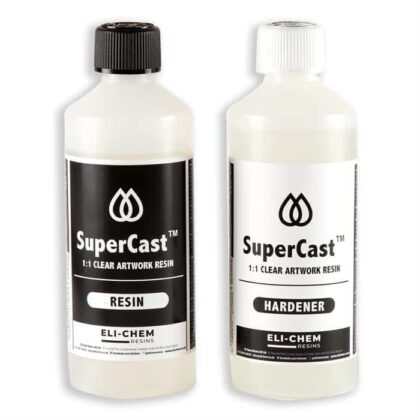

Kit includes Resin & Hardener, in 1:1 Ratio.

SuperCast® - Clear Art Coating Resin
resi-TINT Acrylic Pigment
resi-TINT MAX Pre-Polymer Art Resin Pigment 50g
resi-TINT+ Metallic Powder
resi-METAL Metallic Pigment

You may also like...

resi-TINT Acrylic Pigment 14.00 ex. VAT
resi-TINT MAX Pre-Polymer Art Resin Pigment 50g 13.50 ex. VAT
resi-TINT+ Metallic Powder 20.50 ex. VAT
resi-METAL Metallic Pigment 22.50 ex. VAT

All Ireland Shipping

Specifications

  Mix ratio   by volume: 100 parts resin to 100 parts hardener
by weight: 100 parts resin to 90 parts hardener
  Surfaces   canvas, wood, MDF & glass
  Curing time   touch dry in 4-6 hours at 22°C, full cure in 3-5 days
  Coverage   1 litre of the mixed product will cover approx. 1.43 m²@ 0.5 mm thick (1kg = 1 litre)
  Pot Life   30-45 minutes at 22°C (250g mixed mass)
  Shelf life   one year in sealed containers

Pack Sizes

SuperCast®  Pack Size Coverage at 0.5 mm thick
1kg 0.572 m²

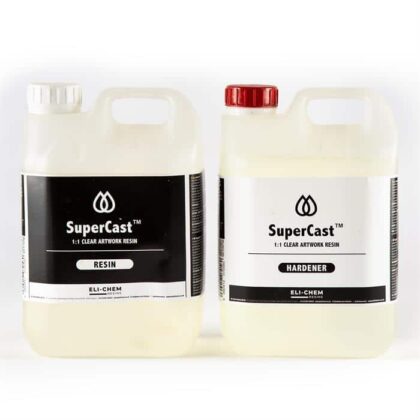

5kg Kit 2.86 m²

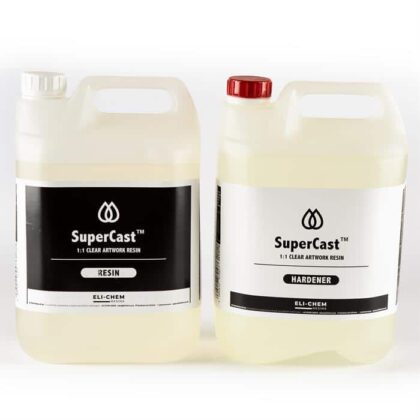

10kg Kit 5.72 m²

Instructions

Mixing

By volume: 100 parts resin to 100 parts hardener

By weight: 100 parts resin to 90 parts hardener

The mixing ratio must be accurately followed. It is not possible to change the ratio. This will result in lower mechanical properties and the resin not drying properly. The mixture must be thoroughly stirred to ensure full homogeneity. Epoxy systems tend to heat up much faster in a pot than as a thin film. Mix only the necessary amount usable within the pot life. Mix until it is streak-free, uniform colour & consistency (usually 2-3 mins).

Application

Apply by hand pouring or brush/roller. SuperCast® can be tinted any colour with the addition of polymer pigments available in all solid and translucent colours.

LEVEL: Ensure your piece is perfectly flat and level, otherwise the resin will run to the lowest point leaving too little resin at the corners or run of the edges. Large canvasses should be supported underneath to prevent sagging and resin pooling.

BUBBLES: Any bubbles created by hand mixing can be easily popped by using a sharp object or by passing warm air over the surface of the resin with a blowtorch or hot air dryer on slow speed settings. Do not hold closer than 30cm to your artwork otherwise you risk creating ripples and dimples in the resin finish. If you use alcohol inks DO NOT use a flame to remove bubbles, the alcohol content in the inks is flammable.

Health & Safety

Our resins are 100% synthetic, they DO NOT contain animal parts or any organic content.
No testing is done on animals whatsoever. Our resins are Vegan friendly and cruelty free.

Although our resins are formulated with the most modern and safest epoxy chemicals available, all epoxy resins are chemicals and should be managed and handled with proactive safety hygiene and responsible care.

  • Always wear nitrile gloves (or use a specialist resin barrier cream)
  • Wear a respirator when sanding partially cured resin
  • It is advisable to work in a well ventilated room
  • We advise the use of safety goggles
  • Avoid skin contact (if resin gets on skin wash with plenty of soap & water)
  • DO NOT eat, drink or smoke while working
  • In case of eye contamination wash with plenty of water for 15 minutes and consult medical advice immediately

Adding inks/paints/mica powder/glitter to epoxy resin will change its properties. If you use alcohol inks DO NOT use a flame to remove bubbles, as alcohol is flammable.

Product Documents

Product Documents

Product Videos



Product Comparisons



MasterCast Art Coating Resin

totalCAST Art Coating & Casting Resin

UltraCast XT Clear Art Casting Resin

Deep Cast Clear Casting Resin for deep pours

Typical Application

Coating / Resin Art Coating / Casting Casting / Resin Art Deep Casting / River Tables

Max Depth

Up to 5mm Up to 5mm coating/Up to 20mm casting (max 3 kgs in one pour) Up to 15mm Up to 12 litres at a maximum of 50mm deep in one pour

Mix Ratio

1:1 1:1 2:1 2:1

Working Time

15 – 20 minutes @ 23°C 10 – 15 minutes @ 23°C 90 minutes @ 20°C 10 hours @ 23°C

Touch Dry

4 – 5 hours @ 23°C (greater than 500g mix) 3 – 4 hours @ 23°C (greater than 500g mix) 24 hours @ 20°C (greater than 500g mix) Can be de-moulded in 3 – 4 days @ 22°C (greater than 1kg mix)

Full Cure

5 – 7 days 5 – 7 days 5 – 7 days 21 days
