The world of 3D printing is exciting and dynamic. Using quality 3D printing resins is a must if you want to stay at the cutting-edge of this fast-growing technology. Scott Bader’s Crestaform 3D printing resins can be used in most stereolithography 3D printers and cured by laser or light. The opportunities truly are endless.
Key benefits of Crestaform 3D resins:
- Mechanical performance.
- High reactivity and printing speed.

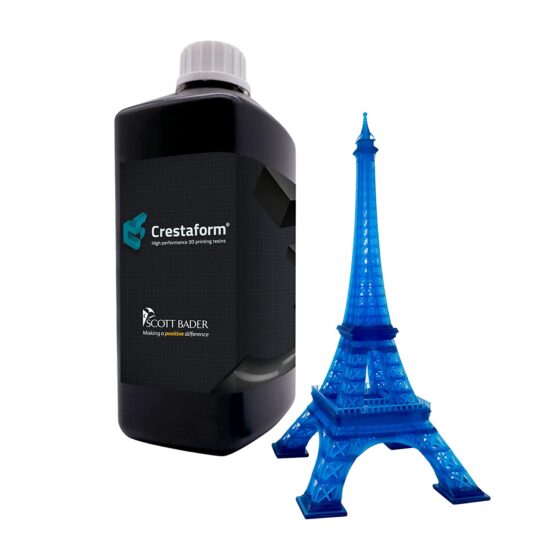

Scott Bader Crestaform 3D Printing Resin
When using Crestaform at a layer height of 50μm and at a printing temperature of 23 degrees you can expect the following parameters:
RGB UV LCD
- Base layer exposure time: 50 – 80 sec
- Normal layer exposure time: 4 – 6 sec
Monochromatic UV LCD
- Base layer exposure time: 30 – 60 sec
- Normal layer exposure time: 1.5 – 2.5 sec
Scott Bader Crestaform Compatibility
The Crestaform resin family has been designed to work with monochromatic and polychromatic LCD DLP printers, such as:
- Anycubic Photon Mono X
- Anycubic Photon S
- Anycubic Photon Mono SE
- Phrozen Sonic Mini
- Elegoo Mars
Crestaform Mechanical Properties At 405nm UV light for 15 minutes at 23°C.
Tensile strength (MPa) | 44 – 56 |
Tensile modulus (GPa) | 1.8 – 2.3 |
Elongation at break (%) | 3.5 – 7.7 |
Flexural strength (MPa) | 74 – 86 |
Flexural modulus (GPa) | 2.1 – 2.5 |
Notched Izod impact (J/m) | >17 |
Hardness (Shore) | 88D |
Heat deflection temperature °C | 47°C |
|
|
|
---|---|---|
|
|
|
---|---|---|
