UltraCast XT Clear Art Casting Resin

40.00296.00 ex. VAT

UltraCast xt is an optically clear epoxy coating/casting resin, it is solvent free with excellent UV resistance and surface heat resistance up to 80°C

Ultra Cast xt resin produces a high gloss, optically clear, attractive finish. It’s self-levelling, can be turned, cut, sanded and polished making it ideal for the following applications:

  • Sealing and coating of artwork/paintings made with acrylic paint, oil paint & watercolour paints

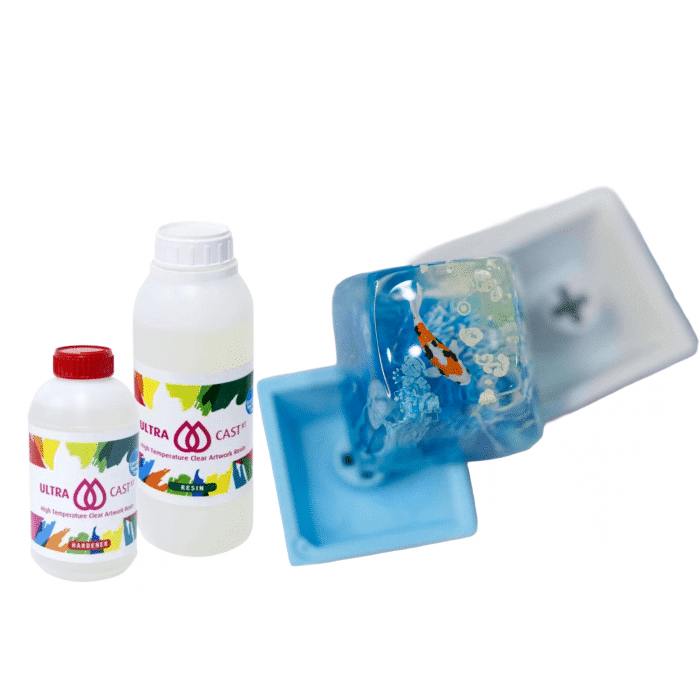

  • Sculptures and mould castings (up to 1000cc in volume)
  • Tabletops, bar counters and kitchen worktops
  • Penny floor and pigmented epoxy floor applications

Kit includes Resin & Hardener, in 2:1 Ratio.

UltraCast XT Clear Art Casting Resin
resi-TINT Acrylic Pigment
resi-TINT MAX Pre-Polymer Art Resin Pigment 50g
resi-TINT+ Metallic Powder
resi-METAL Metallic Pigment

You may also like...

resi-TINT Acrylic Pigment 14.00 ex. VAT
resi-TINT MAX Pre-Polymer Art Resin Pigment 50g 13.50 ex. VAT
resi-TINT+ Metallic Powder 20.50 ex. VAT
resi-METAL Metallic Pigment 22.50 ex. VAT

All Ireland Shipping

Specifications

  Mix ratio   by weight & volume: 100 parts resin to 50 parts hardener
  Surfaces   canvas, wood, MDF, glass, perspex, concrete & metal
  Curing time   touch dry in 24 hours at 20°C, full cure & heat resistance in 14-21 days
  Coverage   1 litre of the mixed product will cover approx. 1.43m² @ 0.5mm thick (1kg = 1L)
  Pot Life   1.5 – 2 hours at 20°C (mixed mass 250g)
  Shelf life   one year in sealed containers

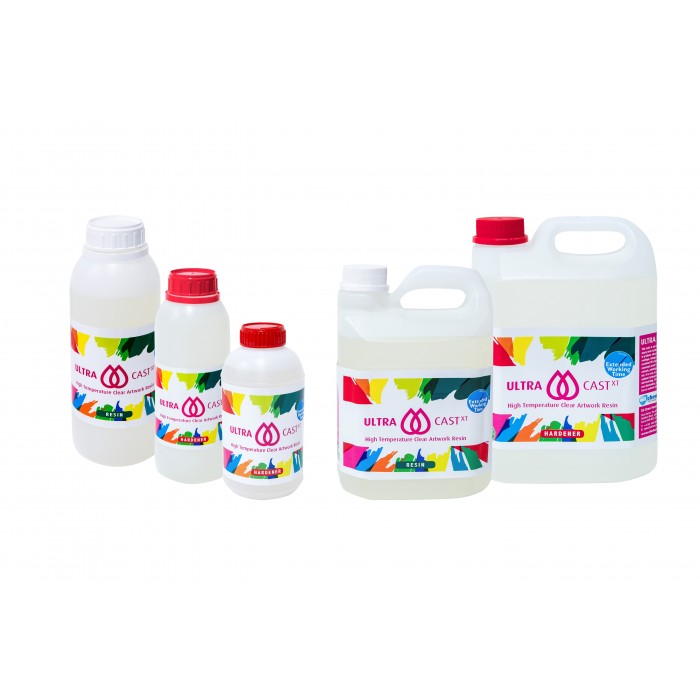

Pack Sizes

UltraCastxt comes in 4 pack sizes so you can buy exactly the right amount for your project. To help you choose the correct kit please see the coverage guide below, then make your selection from the drop down list above. The exact coverage will depend on how thick you want your resin coating and the type of media you are covering.

UltraCast xt Pack Size Coverage at 0.5 mm thick
1.5 kg Kit 2.145 m²
3 kg Kit 4.29 m²
7.5 kg Kit 10.73 m²
15 kg Kit 21.45 m²

Please be aware that if tints are used with UltraCastxt there is a chance colours could bleed into one another if poured next to each other, as the formula has a longer working time and is thinner than MasterCast art resin. Please be advised although our resins are UV stabilised this does not mean they are U.V proof. Ultimately all our clear epoxy resins will show signs of U.V degradation over time. We work constantly to improve the UV protection however resins are plastics and over time the sun will always win that battle.

Instructions

Mixing

The mixing ratio must be accurately followed to achieve perfect results. It is not possible to change the ratio which would result in the resin not drying properly and lower mechanical properties.

The mixed components should be thoroughly stirred for 3-4 minutes to ensure an even consistency. Epoxy systems tend to heat up in a pot than as a thin film, only mix the amount needed for use within the pot life of the product.

Application

The product can be applied by pouring from the mixing vessel or by brush or roller. The mixed resin can be tinted with our resi-TINT pigments, resi-METAL or resi-TINT+ Metallic Powders to make your artwork pop. resi-BLAST will add stunning cells and effects.

Health & Safety

Although our resins are formulated with the most modern and safest epoxy chemicals available, all epoxy resins are chemicals and should be managed and handled with proactive safety hygiene and responsible care.

  • Always wear nitrile gloves (or use a specialist resin barrier cream)
  • Wear a respirator when sanding partially-cured resin
  • It is advisable to work in a well ventilated room
  • We advise the use of safety goggles
  • Avoid skin contact (if resin gets on skin wash with plenty of soap & water)
  • DO NOT eat, drink or smoke while working
  • In case of eye contamination wash with plenty of water for 15 minutes and consult medical advice immediately

Adding inks/paints/mica powder/glitter to epoxy resin will change its properties and may reduce its non-toxicity. If you use alcohol inks DO NOT use a flame to remove bubbles, as alcohol is flammable.

Please note:

This resin system needs 14-21 days to reach maximum cured properties and temperature resistance. If successive layers are applied less than 14 days after the last layer then there will be a surface tension mismatch between layers, resulting in stress lines, wrinkles and other surface optical defects. Although it is touch hard after 24hrs, the surface tension will still be changing over the next 14-21 day period as the epoxy creeps slowly up to 100% cured properties. If you already have wrinkle lines then please give the surface a light sanding and overcoat with a new resin layer (after the prescribed time period).

The addition of pigments (inks, powders and pastes) as well as other resin additives (resi-BLAST, silicone, lubricants, alcohol or solvents) will lower its temperature resistance, this is because pigment substances themselves have a very low temperature threshold.

The addition of alcohol inks in particular can cause problematic surface finish due to its effect of lowering the viscosity (diluting the resin and impacting its density). It can result in cloudiness, dimples and other surface blemishes. The alcohol content in these inks will nullify the resin’s non-flammable properties. When alcohol inks or any other solvent is added, special care should be taken when heating the surface with an open flame blowtorch or butane gun.

The more pigments & additives which are added or mixed into UltraCastxt , the more the thermal withstand of the cured mass is lowered and compromised. In this case, we recommend a final clear topcoat of UltraCast xt   is applied on top of the pigmented layer to bolster its resistance against hot objects placed on it. The heat resistance of all polymers is bolstered by casting depth. Cured thickness functions as an effective heat dissipater. For optimum T.G properties we advise a casting depth of at least 1-2mm.

Due its long open time, UltraCastxt is susceptible to Amine Blush and Polymer Bloom under the following usage conditions : high humidity, low ambient temperature (15°C or below), draughty or windy conditions including air-conditioning. To avoid this effect from occurring we recommend the resin component (Part A) is pre-warmed before mixing with the Hardener. We also request that the working area is kept as consistent as possible with regard to temperature and humidity while the resin is curing.

Product Documents

Product Videos



Product Comparisons



MasterCast Art Coating Resin

totalCAST Art Coating & Casting Resin

UltraCast XT Clear Art Casting Resin

Deep Cast Clear Casting Resin for deep pours

Typical Application

Coating / Resin Art Coating / Casting Casting / Resin Art Deep Casting / River Tables

Max Depth

Up to 5mm Up to 5mm coating/Up to 20mm casting (max 3 kgs in one pour) Up to 15mm Up to 12 litres at a maximum of 50mm deep in one pour

Mix Ratio

1:1 1:1 2:1 2:1

Working Time

15 – 20 minutes @ 23°C 10 – 15 minutes @ 23°C 90 minutes @ 20°C 10 hours @ 23°C

Touch Dry

4 – 5 hours @ 23°C (greater than 500g mix) 3 – 4 hours @ 23°C (greater than 500g mix) 24 hours @ 20°C (greater than 500g mix) Can be de-moulded in 3 – 4 days @ 22°C (greater than 1kg mix)

Full Cure

5 – 7 days 5 – 7 days 5 – 7 days 21 days
